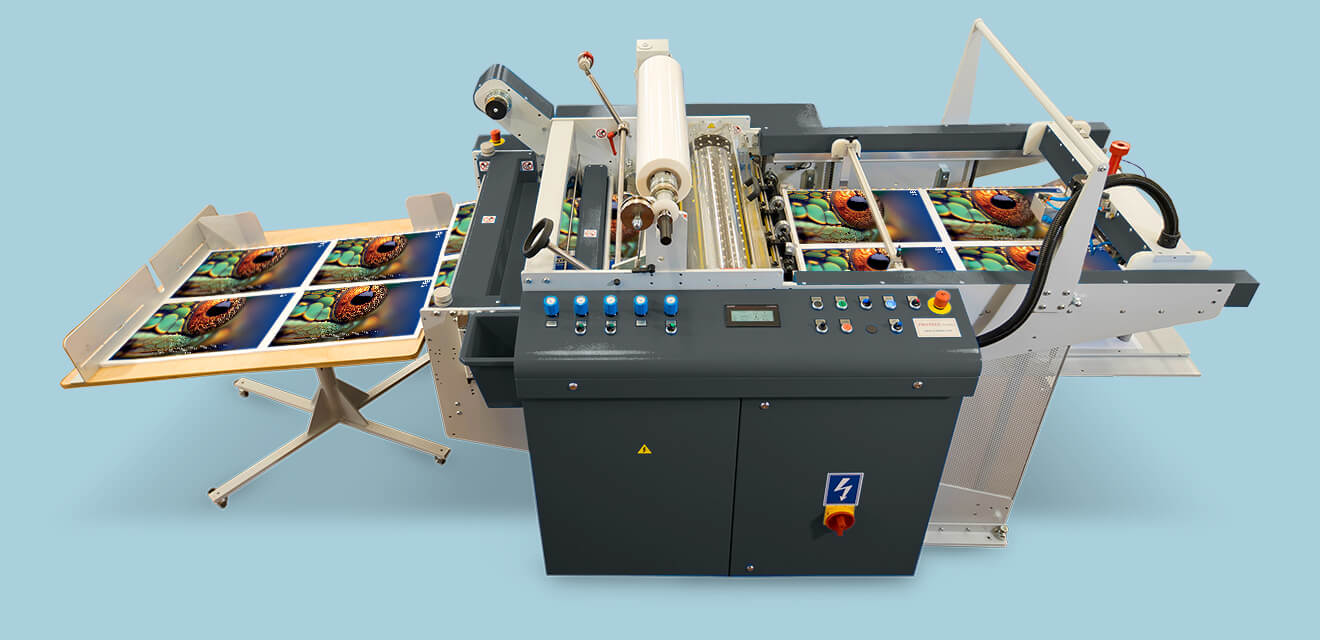

B1 single-sided laminator L300 ST

B1 Single-Sided Laminator L300 ST (Proteus)

PROTEUS is a complete and high-speed production line for single-sided thermal lamination of B1 format sheets.

Unique in its class thanks to its compact design, the L300 ST has been developed for highly demanding users. The machine laminates  B1 format sheets at speeds of up to 35 m/min.



Compact and Affordable B1 Industrial Laminator



Ease of operation and high productivity are ensured not only by the machine’s compact design, but also by its features such as the table lowering to the  floor level (as standard) and integrated control via a touchscreen operator panel.

The automatic stacker completes the pallet-to-pallet configuration, fully optimised for processing offset prints in B1 format. The unit is equipped with its own control panel and a full set of accessories designed to facilitate the transport of material stacked on pallets.

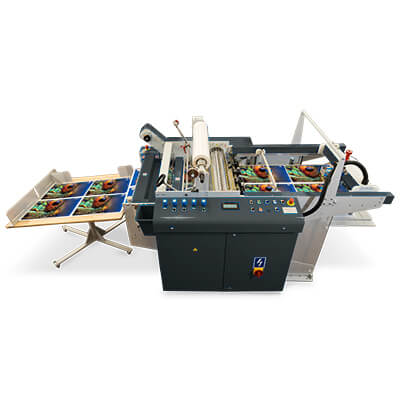

B1 single-sided laminator L300 ST

Product Photo Gallery

  • L300 ST - B1single-sided laminator

    burst separator and jogger

  • L300 ST - B1single-sided laminator

    B1 stacker with conveyor

  • L300 ST - B1single-sided laminator

    feeder head with 4 suction cups

  • L300 ST - B1single-sided laminator

    Raised stacker belt conveyor – bottom view

Watch a video demonstrating the device

Why choose this device?

  • fully automatic line for lamination and sheet separation in B1 format,
  • high production efficiency with lamination speeds of up to 35 m/min,
  • fully ergonomic design, providing maximum operator comfort,
  • floor-level drop feeder included as standard,
  • even heat distribution and stable temperature thanks to the oil-filled heating system,
  • pneumatically adjustable rollers,
  • clear and intuitive touchscreen control panel,
  • compact design, taking up relatively little production space.

Format

B1

Lamination

single-sided

Condition

new

pallet feeder

pallet feeder - option

Landscape format

landscape - no

Functions and Optional Equipment

  • upper rewinder for foiling,
  • lower rewinder (supporting thin sheet lamination),
  • pneumatic expanding film shaft,
  • pallet-to-pallet feeding system,
  • B1 format Jogger / sheet shaker,
  • independently controlled automatic stacker for finished sheets
  • side knife for film trimming,
  • Deionising bar,
  • Deionising nozzle,
  • Industry 4.0

Characteristics

  • Dimensions [L/W/H]: 2220/1430/1410 mm
  • Weight: 1300 kg
  • maximum lamination speed: 35 m/min
  • maximum sheet size: 760 x 1050 mm
  • minimum sheet size: 210 x 220 mm
  • minimum substrate weight: 115 g/m² (optionally from 90 g/m²)
  • maximum substrate weight: 600 g/m²
  • operating temperature range: 70 / 140 ºC
  • steel, chrome-plated cylinder
  • heating system: oil-filled
  • touchscreen control panel
  • sheet feeding accuracy: ±2.0 mm
  • power consumption: 10.0 kW, 400V
  • compressed air consumption: 25 m³/h, 7 bar
  • Effective, adjustable de-curl bar
